Rubber Lining of Agitator & Seperators

Rubber Lining of Agitator & Seperators

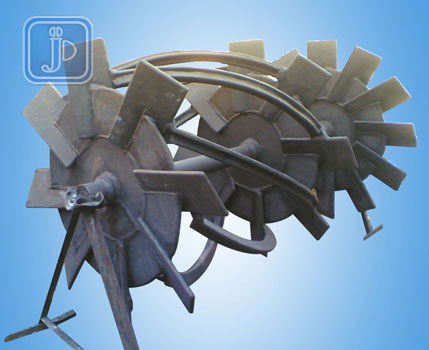

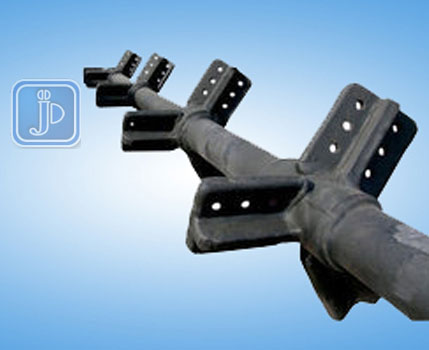

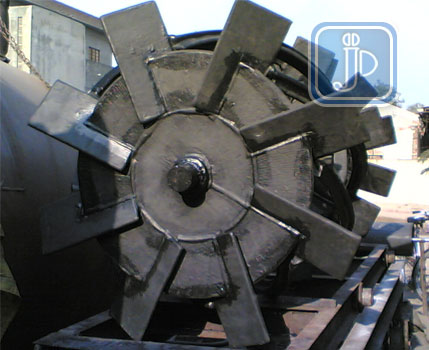

JPI provides best Rubber lining for agitator assembly. Agitator assembly is widely used in water treatment plant and chemical plant.
We also provide triflex Rubber Lining i.e., Ebonit+Soft+Ebonite in 3 layers for impact resistance which is the main cause of damaging the R/L of stirrers/agitators. Our range is widely appreciated for its durability, efficiency and ability to withstand the harshest surroundings. We are specialized in Hypalon Rubber Lining for high temperature, chemical resistance & abrasive resistance.

TECHNICAL SPECIFICATIONS

Rubbers

Ebonite, Neoprene, Hypalon or any Synthetic Rubbers

Hardness

75 ± 5 Shore 'A' for Hypalon Rubber & 85 ± 5 Shore 'D' for Hard Rubber or as per client requirement

Thickness

5 to 10 MM

Testing

Peel off Test, Spark Testing for Leakage detection, Tensile Strength & Hardness testing

FEATURES

  • High impact resistance
  • Fine anti-corrosion
  • Increase Life of Equipments
  • Easy to replace
  • Abrasive resistance
